Exploratory geothermal feasibility · Northern New Mexico · subsurface research orientation
Chapter 01
Where is the heat? Geological setting and resource context for geothermal feasibility research in Northern New Mexico.
Educational figure · regional context

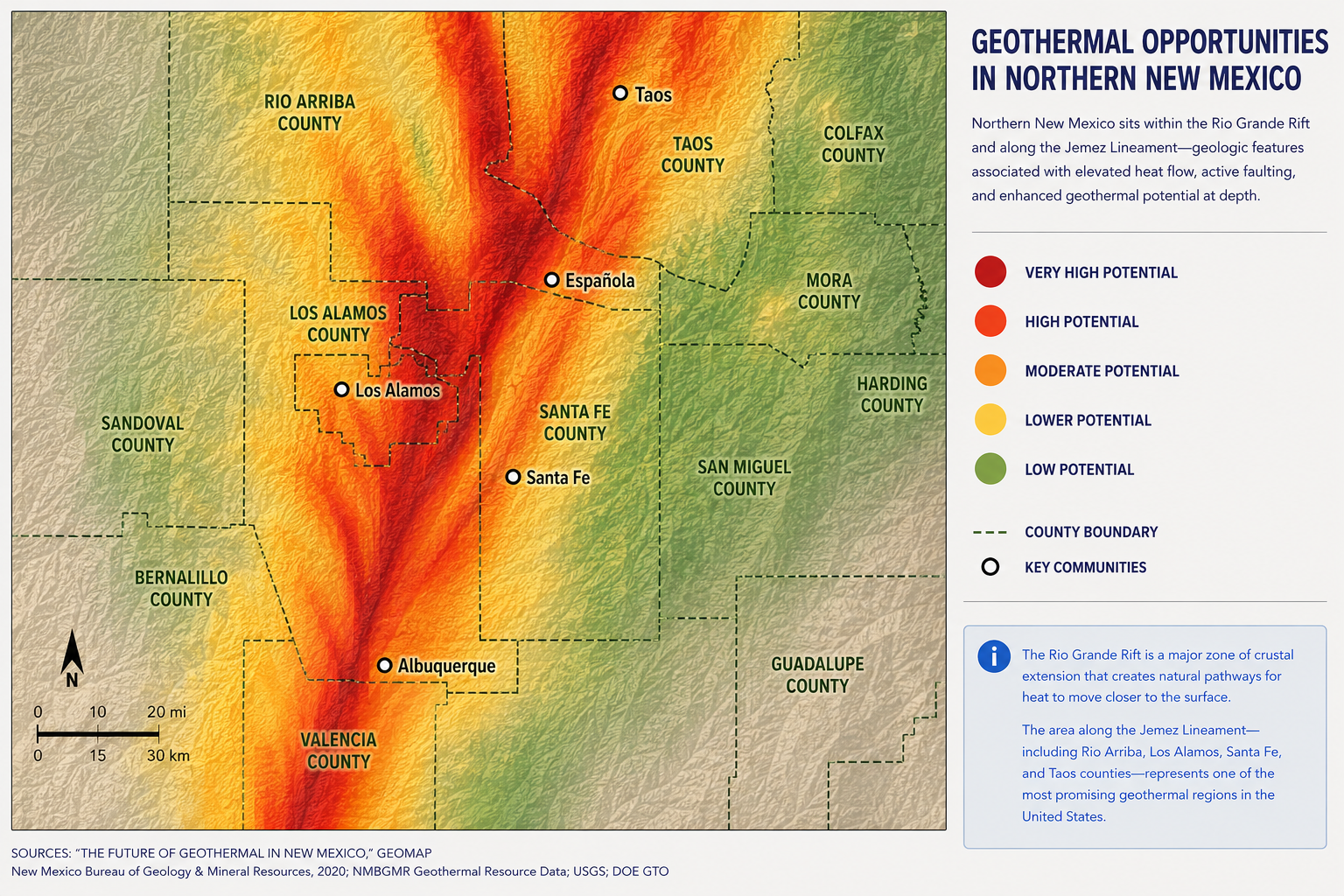

Figure 00 — Regional Geothermal Resource Context
Northern New Mexico sits within the Rio Grande Rift and intersects the Jemez Lineament, a geologically significant region characterized by elevated heat flow and favorable conditions for geothermal feasibility research. The Española Basin occupies one of the most promising areas identified within this broader regional context.
Project Rio is a geothermal initiative evaluating how heat beneath the Española Basin could support a new source of continuous renewable energy generation in Northern New Mexico. Public geothermal resource analyses suggest New Mexico may possess more than 163 gigawatts of theoretical geothermal potential—more than 15 times the state's installed electrical generation capacity in 2023.
The effort combines geological assessment, subsurface modeling, regional coordination, and phased feasibility work aimed at understanding how advanced closed-loop geothermal systems may contribute to future regional infrastructure, grid resilience, industrial growth, and long-term energy independence across the Southwest.
Successful implementation would mean the development of advanced geothermal infrastructure capable of supplying stable continuous energy across the region.
This page documents that ongoing feasibility effort and public research context. El Puente coordinates public-facing orientation and regional framing around the initiative; it does not drill, develop, or operate geothermal resources.
Research orientation · Northern New Mexico · Updated May 2026
Summarizes open questions and cited public context for institutional review. Public feasibility and infrastructure briefing · exploratory geothermal initiative
The rift is a zone where the crust has thinned and stretched. Along the lineament, volcanic and magmatic history left a fingerprint of heat at depth. Together, they help explain why Northern New Mexico appears in statewide geothermal discussions—not as a single point source, but as part of a larger geologic story.
Research suggests high-temperature rock may exist at drillable depths beneath this part of the region, particularly along the Jemez Lineament between the Jemez Mountains and the Rio Grande—and without relying solely on the rare hydrothermal reservoirs that constrain classic geothermal development.
Determining the most viable pathways for development will require phased geological analysis, subsurface imaging, and coordinated feasibility work across the region.
Existing geological research, advanced subsurface imaging, and collaborative modeling with regional scientific and energy institutions may help narrow where Advanced Geothermal Systems (AGS) warrant further study in the Española Basin and surrounding region. Further feasibility evaluation would require continued geological analysis, technical validation, environmental review, and regulatory coordination.
Educational figure · geologic setting

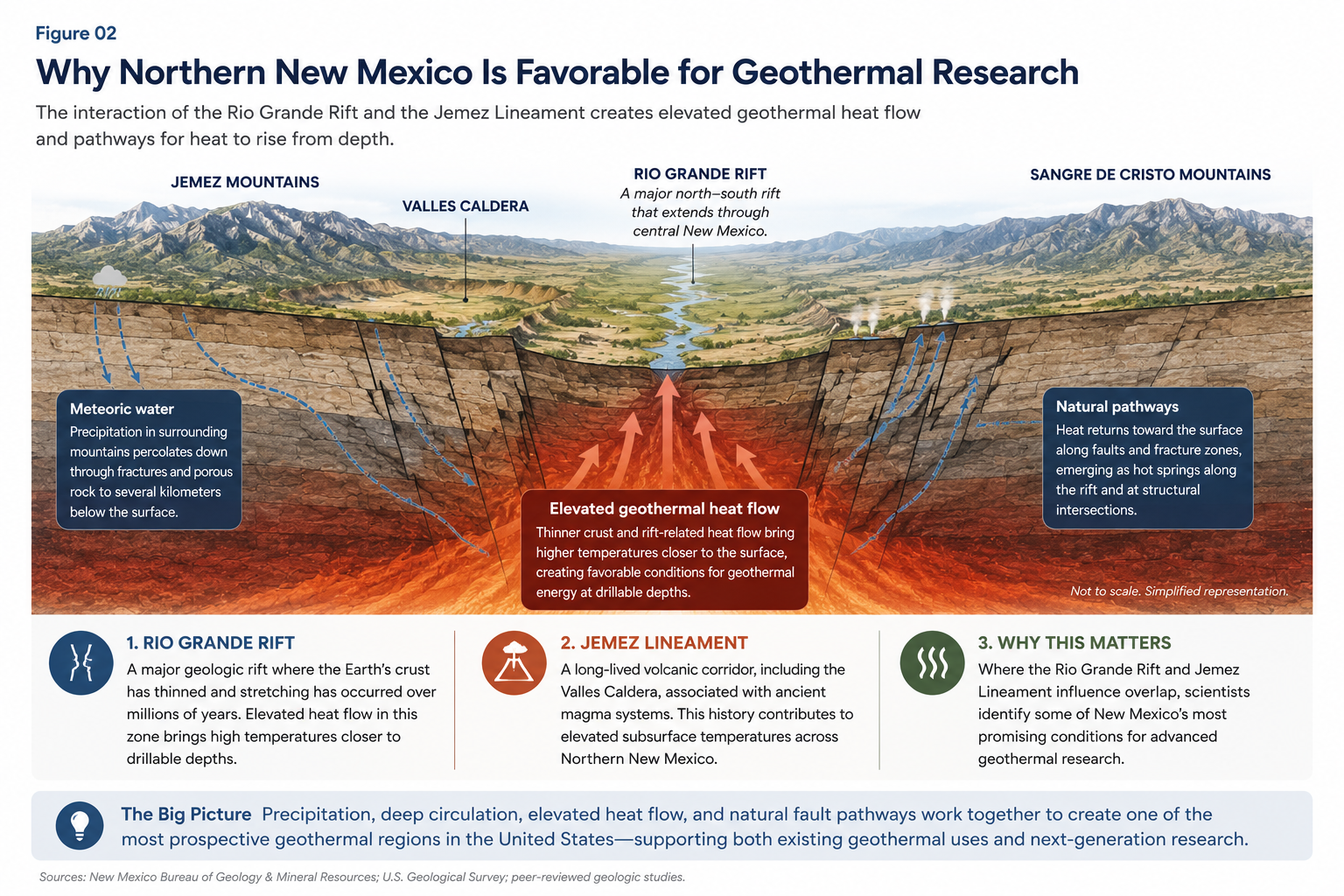

Figure 02 — Why Northern New Mexico Is Favorable for Geothermal Research
Conceptual illustration showing how the Rio Grande Rift, the Jemez Lineament, and elevated geothermal heat flow contribute to favorable conditions for geothermal research across Northern New Mexico. This educational figure is a simplified representation of regional geologic processes and is not intended as a site-specific geological model.
Chapter 02
What is Project Rio? Public description of the initiative's purpose, scope, and El Puente's coordinating role.
Initiative Overview
Purpose
Project Rio is El Puente's geothermal initiative. It evaluates whether advanced closed-loop geothermal systems could contribute to future regional energy infrastructure in Northern New Mexico. The work combines geological assessment, public research synthesis, feasibility evaluation, and regional coordination focused on the Española Basin and surrounding Rio Grande Rift.
Current Scope
Current work includes geological assessment, public research synthesis, closed-loop geothermal concepts, subsurface feasibility evaluation, and regional infrastructure planning. Materials published here may include educational summaries, geological references, conceptual diagrams, and agency or academic sources that help explain the Española Basin context.
El Puente's Role
El Puente coordinates public education, research communication, and regional framing for the initiative. The organization documents feasibility context and geothermal concepts under evaluation so that regional partners and the public can follow the work as it develops.
Project Boundaries
Project Rio is currently a research initiative, a feasibility effort, and an educational resource. It is not a construction project, a drilling program, final engineering, commercial power generation, or approved infrastructure development. Proprietary subsurface data, final siting decisions, engineering specifications, private agreements, funding terms, and operational field schedules are not published here.
Public discussion of geothermal energy often begins from familiar reference points—home heat pumps, hot springs, or conventional power plants. The notes below address the questions raised most often about the advanced closed-loop concepts under evaluation.
Chapter 03
How could this resource actually be used? Closed-loop system concepts under evaluation for regional energy infrastructure.
The feasibility effort examines advanced closed-loop geothermal systems designed to transfer heat from subsurface rock without exchanging fluid with underground water sources—an approach intended to reduce groundwater impacts in arid regions such as Northern New Mexico.
Current evaluation focuses on how closed-loop geothermal configurations may operate within the geological conditions of the Española Basin and broader Rio Grande Rift region compared with traditional hydrothermal systems tied to specific surface expressions.
Educational figure · system concept

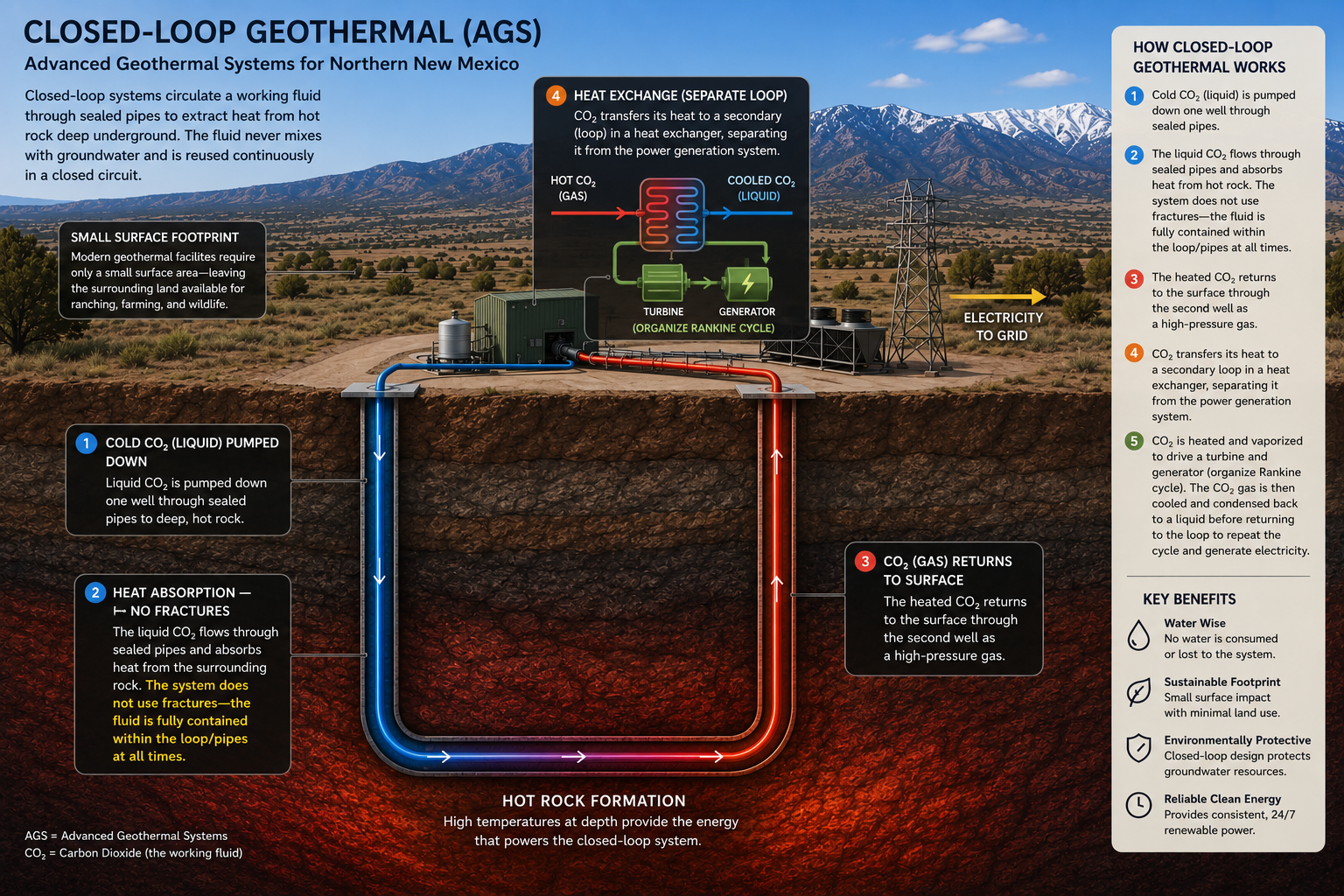

Figure 01 — Conceptual Closed-Loop Advanced Geothermal System (AGS)
Conceptual illustration showing how a sealed closed-loop geothermal system transfers heat from deep subsurface rock without extracting groundwater. This figure is provided for educational and feasibility context and is not a depiction of a proposed El Puente facility.
Understanding geothermal potential involves more than identifying heat beneath the ground. Long-term development would require geological assessment, carefully sited Advanced Geothermal Systems, compact surface facilities, electrical interconnection, and regional planning.
The conceptual illustration below summarizes how those elements could fit together within a broader regional energy framework. It is intended to communicate the overall planning concept rather than depict a specific project or future development.
Educational figure · regional framework

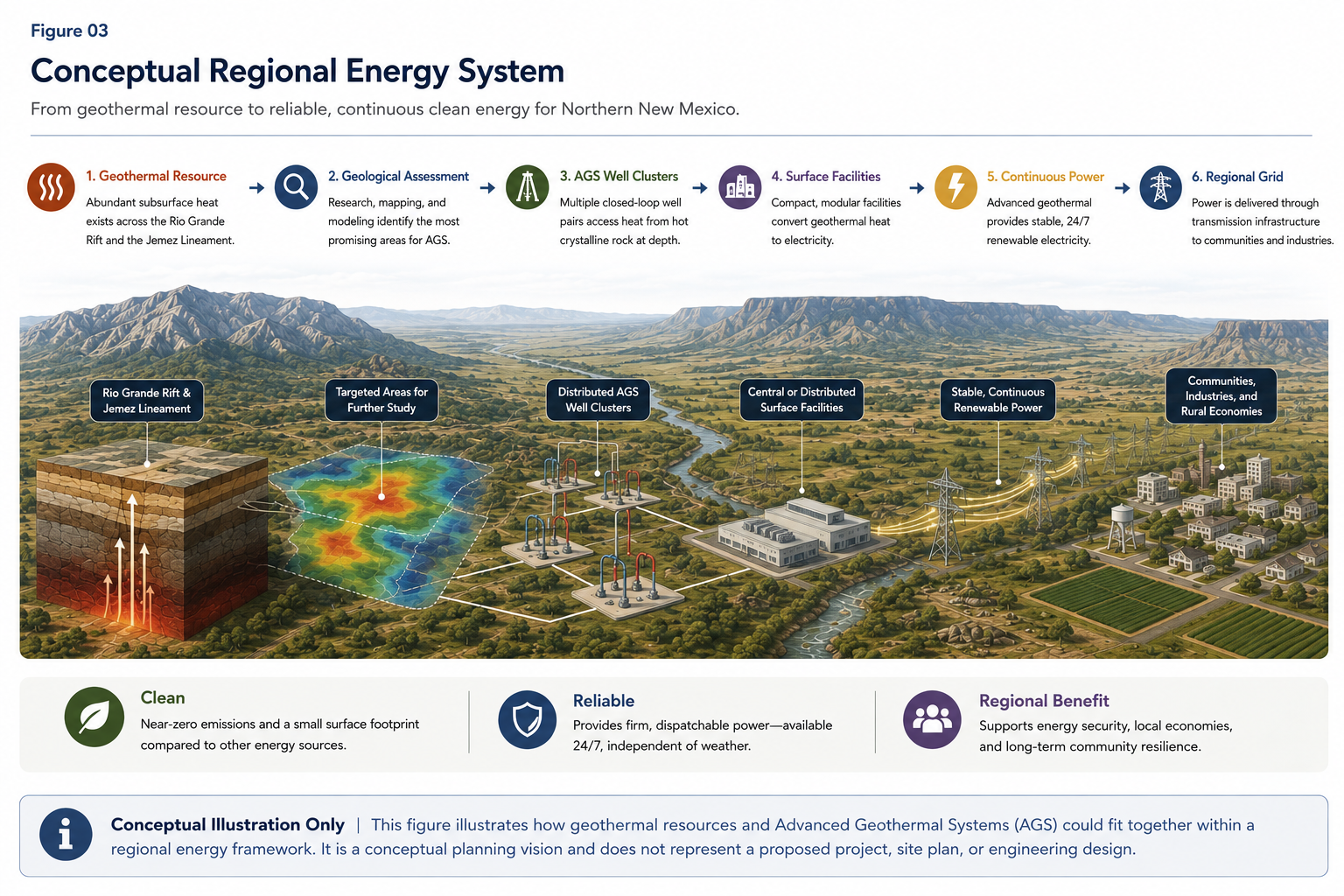

Figure 03 — Conceptual Regional Energy System
Conceptual illustration showing how geothermal resources, geological assessment, Advanced Geothermal Systems (AGS), compact surface facilities, and regional transmission infrastructure could fit together within a long-term regional energy framework.
This educational illustration represents a conceptual planning vision only. It is not a proposed project, engineering design, site layout, or development plan.
Chapter 04
How is this different from what most people imagine when they hear "geothermal"? An educational briefing on common questions about closed-loop Advanced Geothermal Systems.
Public conversations about geothermal energy often begin from familiar images—home heat pumps, hot springs, or large hydrothermal power plants. The Advanced Geothermal Systems concepts under evaluation for Project Rio are different in important ways. The notes below address the questions raised most often in early public and institutional discussions.
Chapter 05
How do we evaluate whether this is actually possible? Geophysical methods and early-stage assessment work supporting subsurface understanding.
Early feasibility phases focus on improving subsurface modeling and screening candidate study areas through geophysical techniques such as magnetotellurics, seismic profiling, and gravity measurements used to clarify underground heat distribution and geological structure.
These data sets help estimate temperature, subsurface conditions, and structural continuity at depth, informing geological models and supporting regional geothermal feasibility assessment across the Española Basin.
Chapter 06
What could this eventually become? Workforce context, grid resilience considerations, and longer-horizon infrastructure planning.
Northern New Mexico already carries substantial experience in drilling, subsurface interpretation, field logistics, and energy-related operations—capabilities that overlap meaningfully with early geothermal feasibility and exploration work.
As geothermal assessment advances, existing regional workforce knowledge, supplier networks, technical experience, and institutional continuity may become important advantages supporting future infrastructure development across the region.
Advanced geothermal systems are being evaluated as a potential source of stable continuous energy infrastructure across Northern New Mexico.
As regional energy demand, electrification, industrial expansion, water constraints, and grid resilience needs continue evolving, geothermal feasibility work may play an important role in future infrastructure planning across the Española Basin and surrounding Southwest region.
The initiative remains in the feasibility and assessment phase, with future development pathways requiring phased technical review, environmental analysis, financing, and regulatory coordination.
Chapter 07
Where does the project currently stand? How to read this brief, public boundaries, and the evolving document record.
Coordination record
How to read this brief. This page serves as a public-facing feasibility and infrastructure briefing intended to support institutional review, technical orientation, funding context, and broader regional coordination discussions related to geothermal development potential in Northern New Mexico.
Coordination posture. El Puente maintains this brief as an evolving public record documenting geothermal feasibility work, regional infrastructure context, geological research synthesis, and ongoing coordination surrounding the Project Rio initiative.
Appropriate uses. The material presented here is intended to support technical review, regional discussion, public orientation, and infrastructure feasibility evaluation related to advanced geothermal systems in Northern New Mexico.
Public boundaries. This public brief is limited to shareable research context, conceptual system information, cited references, and high-level feasibility materials. Proprietary subsurface data, engineering specifications, funding agreements, and operational schedules are not published here.
This public brief documents ongoing geothermal feasibility work, geological context, infrastructure implications, and regional coordination surrounding the Project Rio initiative within Northern New Mexico.
Materials published here may evolve as feasibility assessment, geological analysis, and infrastructure planning efforts continue.
Document record · Public feasibility brief · Updated May 2026
